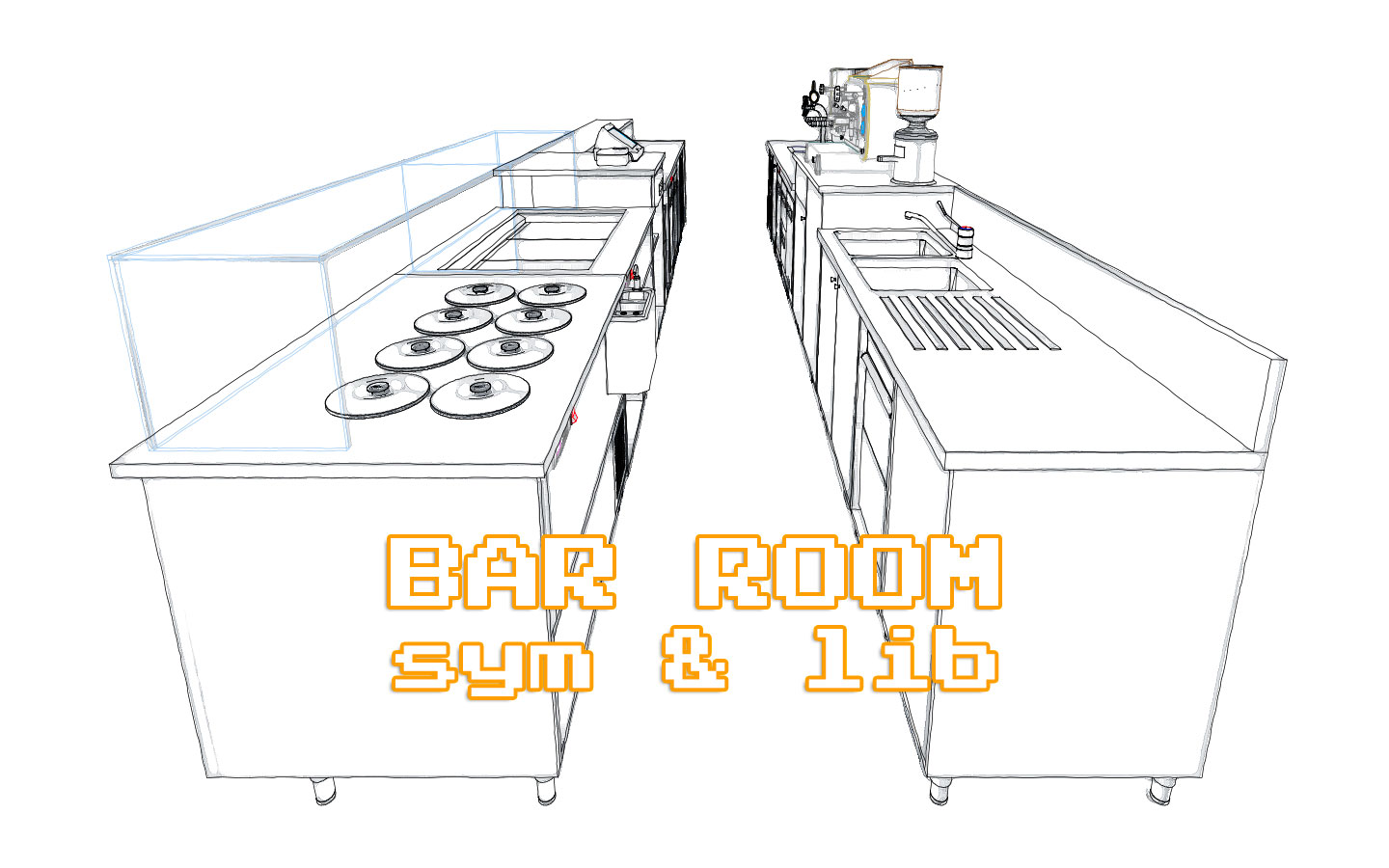

This package contains symbols and pre-built groups suitable for bar room projects.

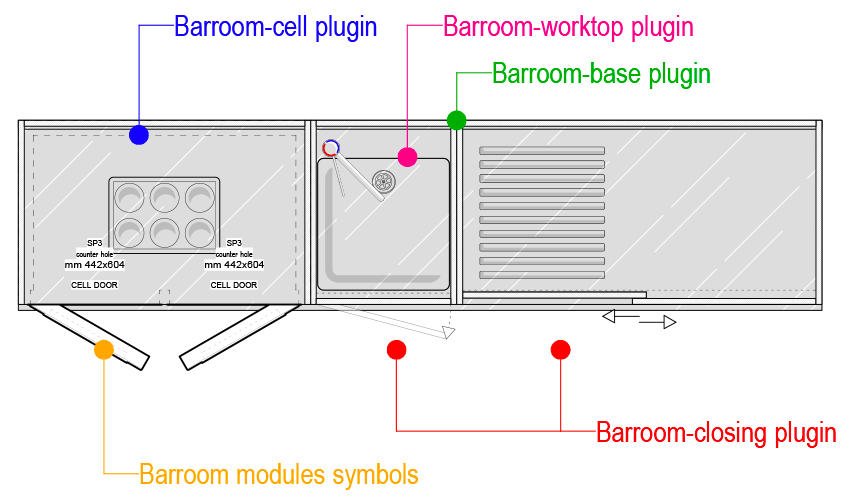

It also includes some valuable plugins to customize parametric objects: refrigerated cells, bases, closings and working tops.
Worktop plugin: using this you can optionally setup your worktop with one / two sinks, bottleholder, drainboard, rises, rounded or angled corners and many other parameters.
Base plugin: using this you can get the structure for cells and worktop.
Closing plugin: using this you can close your bases with doors, sliders or drawers.
Cells plugin: this is used (in the bar room modules file) to represent refrigerated cells on the european market.
Look / download the PDF of contents
| Art. | Symbol name | Description | Size in. | Image |
|---|---|---|---|---|
| PM-250 | BRS - CS1-1/1T-drawer single P45 | drawer single P45 | 18 x 18 x 11,9 |  |
| PM-251 | BRS - CS1-2/2T-drawer single P45 | drawer single P45 (for cells H51) | 18 x 18 x 16,5 |  |
| PM-252 | BRS - CS1-3/3T-drawer single P55 | drawer single P55 | 21,9 x 18 x 11,9 |  |
| PM-253 | BRS - CS1-4/4T-drawer single P55 | drawer single P55 (for cells H51) | 21,9 x 18 x 16,5 |  |
| PM-254 | BRS - CS1/2-1 drawers 2= P45 | drawers 2= P45 (for cells H77) | 18 x 18 x 24,4 |  |
| PM-255 | BRS - CS1/2-2 drawers 2= P55 | drawers 2= P55 (for cells H77) | 21,9 x 18 x 24,4 |  |
| PM-256 | BRS - CS2/3-1 drawers 2≠ P45 | drawers 2≠ P45 (for cells H77) | 18 x 18 x 24,4 |  |
| PM-257 | BRS - CS2/3-2 drawers 2≠ P55 | drawers 2≠ P55 (for cells H77) | 21,9 x 18 x 24,4 |  |
| PM-258 | BRS - CS3/3-1 drawers 3= P45 | drawers 3= P45 (for cells H77) | 18 x 18 x 24,4 |  |
| PM-259 | BRS - CS3/3-2 drawers 3= P55 | drawers 3= P55 (for cells H77) | 21,9 x 18 x 24,4 |  |
| PM-260 | BRS - CSM-C drawer micro cash | drawer micro cash | 18,4 x 15,1 x 6,6 |  |
| PM-261 | BRS - CSM-F micro drawer for coffee grounds | micro drawer for coffee grounds | 18,1 x 15,1 x 6,6 |  |
| PM-262 | BRS - CSR-C drawer micro cash with lock | drawer micro cash with lock | 19,3 x 17,2 x 8,4 |  |
| PM-263 | BRS - CSR-F drawer for coffee grounds | drawer for coffee grounds | 18,6 x 17,2 x 8,4 |  |
| PM-264 | BRS - CSV1/2-1 drawers 2= P45 GLASS | drawers 2= P45 GLASS | 17,8 x 18 x 24,4 |  |
| PM-265 | BRS - CSV1/2-2 drawers 2= P55 GLASS | drawers 2= P55 GLASS | 21,8 x 18 x 24,4 |  |
| PM-266 | BRS - drawer micro neutral 38,4x16,7 | drawer micro neutral 38,4x16,7 | 17,7 x 15,1 x 6,6 |  |
| PM-267 | BRS - drawer micro neutral 43,7x21,3 | drawer micro neutral 43,7x21,3 | 18,6 x 17,2 x 8,4 |  |
| PM-268 | BRS - SP1 cell door | cell door | 2,3 x 18 x 11,9 |  |
| PM-269 | BRS - SP2 cell door | cell door (for cells H51) | 2,3 x 18 x 16,5 |  |
| PM-270 | BRS - SP3 cell door | cell door (for cells H77) | 2,3 x 18 x 24,4 |  |
| PM-271 | BRS - SPV1 cell door with GLASS | cell door with glass pane (for cells H77) | 2,2 x 18 x 24,4 |  |
| PM-272 | BRS - TFD double waste hopper | double waste hopper | 17 x 15,2 x 24,6 |  |
| PM-273 | BRS - TFS single waste hopper | single waste hopper | 10,2 x 15,2 x 12,2 |  |
| PM-274 | BRS - TR1 waste container | waste container | 13,5 x 18,5 x 20,9 |  |
| PM-275 | BRS - TR2 waste container | waste container | 13,5 x 18,5 x 24,8 |  |
| PM-276 | BRS - TRAL1 waste hopper | waste hopper | 19,1 x 16,8 x 27,6 |  |
| PM-277 | BRS - TRAL2 waste hopper | waste hopper | 19,1 x 16,8 x 23,3 |  |
| PM-278 | builtin module x2 topping tanks | builtin module x2 topping tanks | 18,5 x 11,2 x 8,3 |  |
| PM-279 | builtin module x4 topping tanks | builtin module x4 topping tanks | 18,5 x 17,5 x 8,3 |  |
| PM-280 | builtin module x6 topping tanks | builtin module x6 topping tanks | 18,5 x 23,8 x 8,3 |  |
| PM-281 | builtin module x8 topping tanks | builtin module x8 topping tanks | 18,5 x 30,3 x 8,3 |  |
| PM-295 | REFRIGERATED WALL CABINET L124 | L124 cm refrigerated wall cabinet | 18,1 x 48,8 x 28,5 |  |
| PM-296 | REFRIGERATED WALL CABINET L174 | L174 cm refrigerated wall cabinet | 18,1 x 68,5 x 28,5 |  |
| PM-297 | tub cap | tub cap | 8,7 x 8,7 x 2,1 |  |
| PM-298 | VI-90°TN-760/25 | Drop-in showcase-90°TN-760/25 | 49,2 x 49,2 x 9,8 |  |
| PM-299 | VI-90°TN-760/38 | Drop-in showcase-90°TN-760/38 | 49,2 x 49,2 x 15 |  |
| PM-300 | VI-100VTN-760/25 | Drop-in showcase-100VTN-760/25 | 39,4 x 29,9 x 9,8 |  |
| PM-301 | VI-100VTN-760/38 | Drop-in showcase-100VTN-760/38 | 39,4 x 29,9 x 15 |  |
| PM-302 | VI-125VTN-760/25 | Drop-in showcase-125VTN-760/25 | 49,2 x 29,9 x 9,8 |  |
| PM-303 | VI-125VTN-760/38 | Drop-in showcase-125VTN-760/38 | 49,2 x 29,9 x 15 |  |
| PM-304 | VI-150VTN-760/25 | Drop-in showcase-150VTN-760/25 | 59,1 x 29,9 x 9,8 |  |
| PM-305 | VI-150VTN-760/38 | Drop-in showcase-150VTN-760/38 | 59,1 x 29,9 x 15 |  |
| PM-306 | VI-200VTN-760/25 | Drop-in showcase-200VTN-760/25 | 78,7 x 29,9 x 9,8 |  |
| PM-307 | VI-200VTN-760/38 | Drop-in showcase-200VTN-760/38 | 78,7 x 29,9 x 15 |  |
| PM-308 | VS-VAR 90A MI-G- 2130x1016x1360 | Snack showcase - Straight glass - H136 90° Angle | 60,1 x 59,4 x 53,5 |  |
| PM-309 | VS-VAR 100 MI - 1000x833x1360 | Snack showcase - Straight glass - H136 L100 | 39,4 x 33,1 x 53,5 |  |
| PM-310 | VS-VAR 125 MI - 1250x833x1360 | Snack showcase - Straight glass - H136 L125 | 49,3 x 33,1 x 53,5 |  |
| PM-311 | VS-VAR 150 MI - 1500x833x1360 | Snack showcase - Straight glass - H136 L150 | 59,1 x 33,1 x 53,5 |  |
| PM-312 | VS-VAR 200 MI - 2000x833x1360 | Snack showcase - Straight glass - H136 L200 | 78,8 x 33,1 x 53,5 |  |
| PM-313 | VS-VARC-100-MI-1000x833x1360 | Snack showcase - Curved glass - H136 L100 | 39,4 x 33,1 x 53,5 |  |
| PM-314 | VS-VARC-125-MI-1250x833x1360 | Snack showcase - Curved glass - H136 L125 | 49,3 x 33,1 x 53,5 |  |
| PM-315 | VS-VARC-150-MI-1500x833x1360 | Snack showcase - Curved glass - H136 L150 | 59,1 x 33,1 x 53,5 |  |
| PM-316 | VS-VARC-200-MI-2000x833x1360 | Snack showcase - Curved glass - H136 L200 | 78,8 x 33,1 x 53,5 |  |
| PM-317 | VS-VBR 90A MI-G- 2130x1016x1160 | Snack showcase - Straight glass - H116 90° Angle | 60,1 x 59,4 x 45,7 |  |
| PM-318 | VS-VBR 100 MI - 1000x833x1160 | Snack showcase - Straight glass - H116 L100 | 39,4 x 33,1 x 45,7 |  |
| PM-319 | VS-VBR 125 MI - 1250x833x1160 | Snack showcase - Straight glass - H116 L125 | 49,3 x 33,1 x 45,7 |  |
| PM-320 | VS-VBR 150 MI - 1500x833x1160 | Snack showcase - Straight glass - H116 L150 | 59,1 x 33,1 x 45,7 |  |
| PM-321 | VS-VBR 200 MI - 2000x833x1160 | Snack showcase - Straight glass - H116 L200 | 78,8 x 33,1 x 45,7 |  |
Follow Paolo Marcuccetti's Gumroad® shop page
where you can buy this and other packages related to my Vectorworks® production.
After the payment is confirmed, download should start immediately.
What you'll get is a Vectorworks® file that can be opened with Vectorworks® 2020 or newer.
Simply open this file and grab / copy the symbol / group you need to use in your drawing. That's all!
