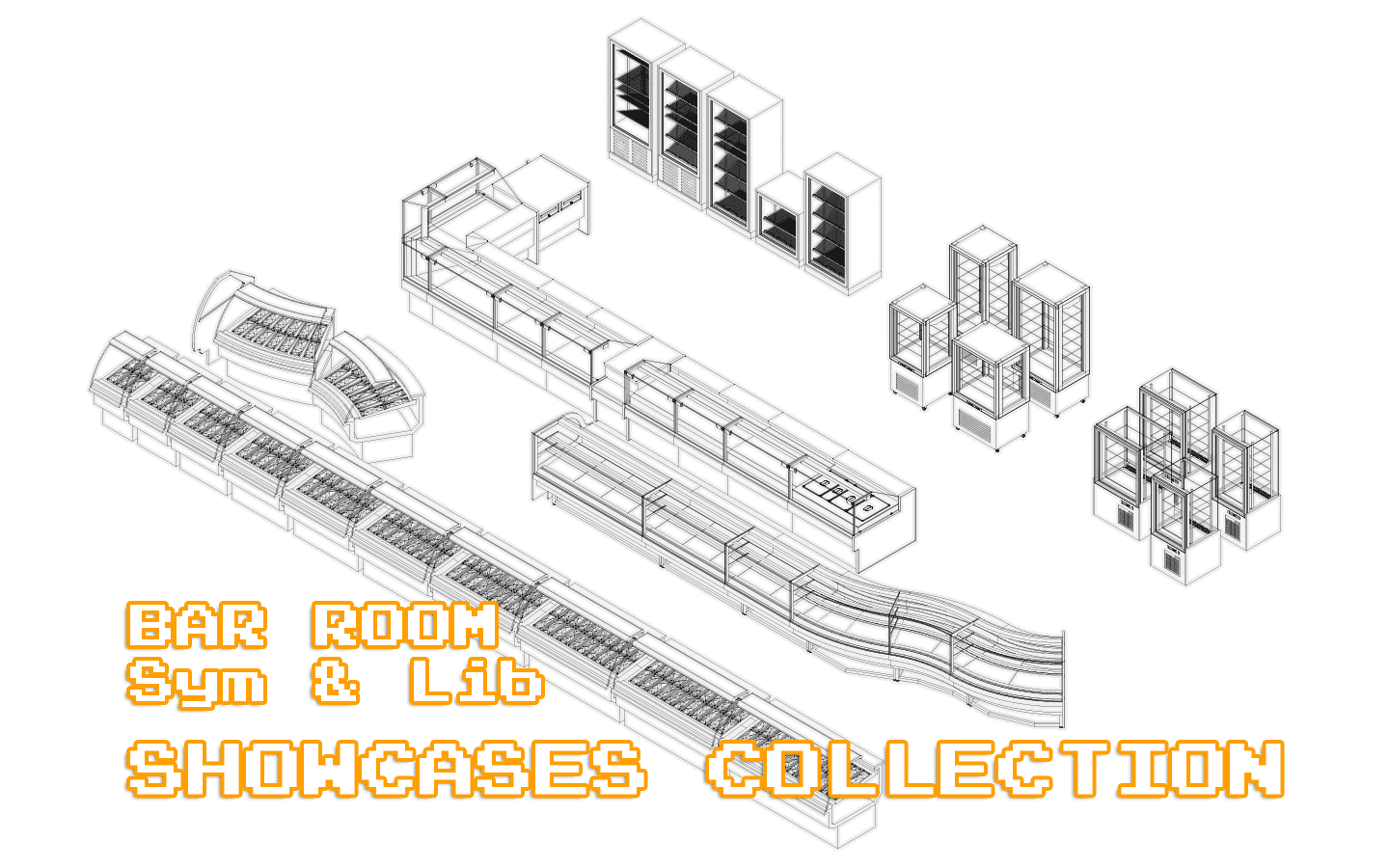

Overview

Look / download the PDF of contents

Art. Symbol name Description Size in. Image
PM-150 ALL GLASS pastry shop display 65x65x150 ALL GLASS pastry shop display 65x65x150 26,5 x 27,2 x 59,1
PM-151 ALL GLASS pastry shop display 65x65x170 ALL GLASS pastry shop display 65x65x170 26,5 x 27,2 x 66,9
PM-152 ALL GLASS pastry shop display 85x65x150 ALL GLASS pastry shop display 85x65x150 26,5 x 35 x 59,1
PM-153 ALL GLASS pastry shop display 85x65x170 ALL GLASS pastry shop display 85x65x170 26,5 x 35 x 66,9
PM-159 flank ICE CREAM SHOWCASE flank ICE CREAM SHOWCASE 45,6 x 1,2 x 52,4
PM-162 GSS angolo A90 Gastronomy shop showcase angolo A90 78 x 78 x 47,2
PM-163 GSS cash 62,5 Gastronomy shop showcase cash 62,5 24,6 x 46 x 34,3
PM-164 GSS cash 93,7 Gastronomy shop showcase cash 93,7 36,9 x 46 x 34,3
PM-165 GSS-187,5 heated Gastronomy shop showcase -187,5 heated 73,8 x 46 x 47,2
PM-166 GSS-cash flank Gastronomy shop showcase -cash flank 1,6 x 46,5 x 34,2
PM-167 GSS-EI200-93.5cm Gastronomy shop showcase -EI200-93.5cm 36,8 x 46 x 47,2
PM-168 GSS-EI200-125cm Gastronomy shop showcase -EI200-125cm 49,2 x 46 x 47,2
PM-169 GSS-EI200-187,5 cm Gastronomy shop showcase -EI200-187,5 cm 73,8 x 46 x 47,2
PM-170 GSS-EI400-125cm Gastronomy shop showcase -EI400-125cm 49,2 x 46 x 47,2
PM-171 GSS-EI410-125cm Gastronomy shop showcase -EI410-125cm 49,2 x 46 x 47,2
PM-172 GSS-flank Gastronomy shop showcase -flank 1,6 x 46,5 x 47,1
PM-175 module 30° closed module ICE CREAM SHOWCASE 30° closed 76,7 x 77,7 x 52,3
PM-176 module 30° open module ICE CREAM SHOWCASE 30° open 55 x 59,4 x 52,3
PM-177 module ICE CREAM SHOWCASE- 3+3 module ICE CREAM SHOWCASE- 3+3 45,2 x 22,6 x 52,3
PM-178 module ICE CREAM SHOWCASE- 4+4 module ICE CREAM SHOWCASE- 4+4 45,2 x 29,1 x 52,3
PM-179 module ICE CREAM SHOWCASE- 5+5 module ICE CREAM SHOWCASE- 5+5 45,2 x 35,7 x 52,3
PM-180 module ICE CREAM SHOWCASE- 6+6 module ICE CREAM SHOWCASE- 6+6 45,2 x 42,3 x 52,3
PM-181 module ICE CREAM SHOWCASE- 7+7 module ICE CREAM SHOWCASE- 7+7 45,2 x 48,9 x 52,3
PM-182 module ICE CREAM SHOWCASE- 8+8 module ICE CREAM SHOWCASE- 8+8 45,2 x 55,4 x 52,3
PM-183 module ICE CREAM SHOWCASE- 9+9 module ICE CREAM SHOWCASE- 9+9 45,2 x 62 x 52,3
PM-184 module ICE CREAM SHOWCASE- 10+10 module ICE CREAM SHOWCASE- 10+10 45,2 x 68,6 x 52,3
PM-185 module ICE CREAM SHOWCASE- 11+11 module ICE CREAM SHOWCASE- 11+11 45,2 x 75,2 x 52,3
PM-186 module ICE CREAM SHOWCASE- 12+12 module ICE CREAM SHOWCASE- 12+12 45,2 x 81,7 x 52,3
PM-189 pastry shop display, 2 shelves, 30° CH pastry shop display, 2 shelves, 30° CH 64,8 x 54,7 x 53,5
PM-190 pastry shop display, 2 shelves, 30°R3 pastry shop display, 2 shelves, 30°R3 59,4 x 54,9 x 53,5
PM-191 pastry shop display, 2 shelves, 45°AP pastry shop display, 2 shelves, 45°AP 60,4 x 56,9 x 53,5
PM-192 pastry shop display, 2 shelves, 1249mm pastry shop display, 2 shelves, 1249mm 49,2 x 45 x 53,5
PM-193 pastry shop display, 2 shelves, 1583mm pastry shop display, 2 shelves, 1583mm 62,3 x 45 x 53,5
PM-194 pastry shop display, 2 shelves, 2084mm pastry shop display, 2 shelves, 2084mm 82,1 x 45 x 53,5
PM-195 pastry shop display, flank pastry shop display, flank 1 x 45,2 x 48,6
PM-196 vertical pastry shop display 65x65x150H vertical pastry shop display 65x65x150H 25,7 x 25,6 x 59,1
PM-197 vertical pastry shop display 65x65x190H vertical pastry shop display 65x65x190H 25,7 x 25,6 x 74,8
PM-198 vertical pastry shop display 85x65x150H vertical pastry shop display 85x65x150H 25,7 x 33,5 x 59,1
PM-199 vertical pastry shop display 85x65x190H vertical pastry shop display 85x65x190H 25,7 x 33,5 x 74,8
PM-200 wine display 84x62,5x80 without condenser unit wine display 84x62,5x80 without condenser unit 24,6 x 33,1 x 34,6
PM-201 wine display 84x62,5x160 without condenser unit wine display 84x62,5x160 without condenser unit 24,6 x 33,1 x 65
PM-202 wine display 84x62,5x200 doble sided with condenser unit wine display 84x62,5x200 doble sided with condenser unit 24,6 x 33,1 x 78,7
PM-203 wine display 84x62,5x200 with condenser unit wine display 84x62,5x200 with condenser unit 24,6 x 33,1 x 78,7
PM-204 wine display 84x62,5x200 without condenser unit wine display 84x62,5x200 without condenser unit 24,6 x 33,1 x 78,7

Get it!

Follow Paolo Marcuccetti's Gumroad® shop page
where you can buy this and other packages related to my Vectorworks® production.

Loading...

Installation / usage

After the payment is confirmed, download should start immediately.
What you'll get is a Vectorworks® file that can be opened with Vectorworks® 2020 or newer.
Simply open this file and grab / copy the symbol / group you need to use in your drawing. That's all!
